Merging layers

Jump to Mobile


When finished with the layer content on a couple layers, you can merge layers, using one of the merge tools to combine them.

There are two merge tools:

  • Merge with below takes the selected layer and combines it with the layer below.
  • Merge all layers combines all your layers.

Merging layers in Sketchbook Pro for desktop

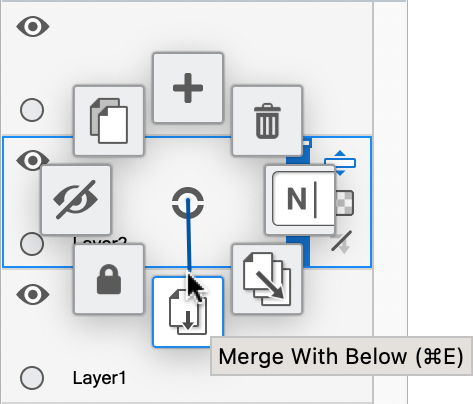

Use Merge with below to combine two layers into one.

Tap the upper layer's marking menu  and choose  to merge it with the one below

Or use the hotkey combination Cmd+E on Mac or Ctrl+E on Windows.

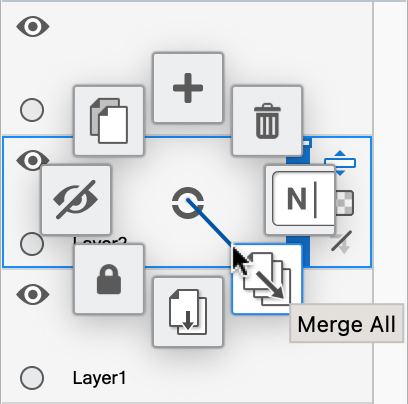

Use Merge all layers to flatten all layers in the project into a single layer.

Tap the upper layer's marking menu  and choose  to merge all layers. The merge action will include locked layers and hidden layers. Unhide all layers with data you want to keep before merging as hidden layers will be lost in a merge.



Merging layers in Sketchbook for mobile devices

In the Layer Editor, double-tap a layer to open the Layer Menu

If you plan to merge only two layers, tap the upper of the two layers to open its Layer Menu. If you are merging all layers, or all visible layers, you can open the Layer Menu on any layer.

The default action is to merge two layers. Tap the  icon to merge the current layer with the layer below it.

To merge all layers, or all visible layers, tap  to access the additional options.
