Distorting a selection

Jump to Mobile

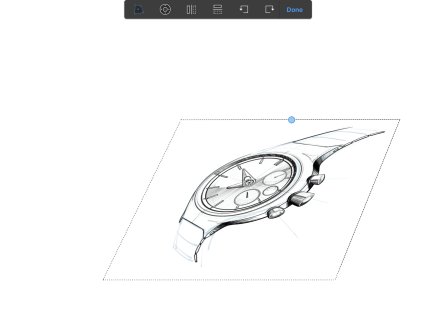

With  Distort, you can drag the handles in any direction to distort a selection. Content is automatically stretched to fit the confines of the newly-shaped bounding box.

 Since they aren’t constrained to 90 degrees, you can use them to create a sense of perspective or speed.Move the handles to force perspective upon the contents of the bounding box.

NOTE: you can use Distort in conjunction with perspective guides to fit something into an existing scene.

What is the bias

When using Distort, you will see a manipulator in the middle of the bounding box . This is the bias. Use it to foreshorten, change the proportions of a sketch, or change the actions of a character.

Distorting a selection in Sketchbook Pro for desktop

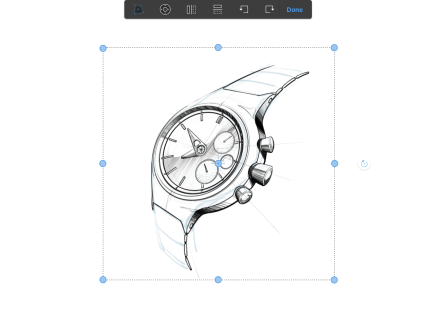

  1. In the toolbar, tap  Transform and select  . A bounding box appears surrounding the content.

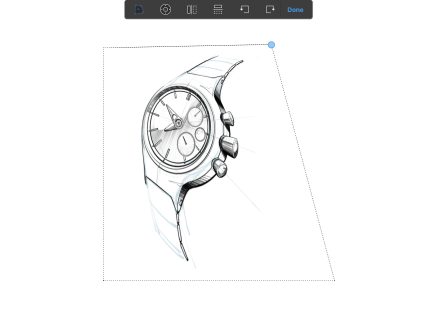

  2. Tap-drag the outer handles  to change the bounding box and distort the content inside it
  3. Tap-drag the central handle, Bias, to foreshorten or change the proportions of the selection

Distorting multiple layers

Select multiple layers, using Shift, then tap . Tap-drag the handles of the bounding box to distort the content across all the selected layers.


Distorting a selection in Sketchbook for mobile devices

Tap  Transform and select . A bounding box appears surrounding the content.


Tap-drag the outer handles to automatically stretch the content to fit the confines of the newly-shaped bounding box.


Tap-drag the central handle, Bias, to foreshorten or change the proportions of a sketch, such as changing the actions of a character.
